MOMENTARY PUSH BUTTON SWITCH WITH CAP

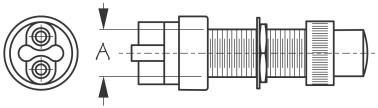

Polypropylene| Bulk | Display | Action | Amps | A | Max. Panel | Shaft Length | Terminal Type | Cap | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 420427 | 420427-1 | SPST Mom. On-Off | 30 | 5/8" | 1-1/8" | Long | Boss-2 | Yes | .07 | 10 ea |

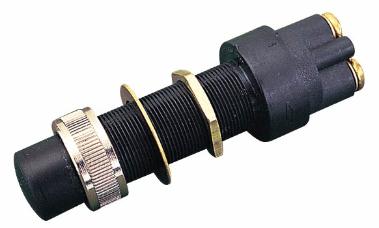

This momentary Push Button On/Off switch features 2 boss copper alloy screw terminal contacts. Compact behind-dash panel dimensions allow for mounting in confined spaces. Overall length: 2-7/8”. Mounting stem: 1-7/16" x 5/8"-32 thread. Maximum panel thickness: 1-1/8". 30A @ 12VDC. Constructed of a corrosion resistant glass reinforced polyester housing with an elastomeric rubber internal gasket and ultrasonic welding for increased water resistance. Includes rubber boot nut.
