BUSS BAR SCREW-TERMINAL BLOCK

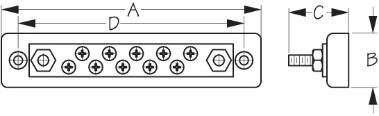

Tin Plated Brass/ABS| Bulk | Display | Terminals | A | B | C | D | Amps | Fastener | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 426722 | 426722-1 | 10 x #8-32 | 6" | 1-1/4" | 1-3/8" | 5-3/16" | 150 | #10 RH | .24 | 1 ea | |
| 426724 | 426724-1 | 20 x #8-32 | 9-1/8" | 1-1/4" | 1-3/8" | 8-7/16" | 150 | #10 RH | .36 | 1 ea | |
| 426733 | 426733-1 | 12 x #10 | 7-15/16" | 1-1/2" | 1-5/8" | 7-1/8" | 250 | #10 RH | .69 | 1 ea |

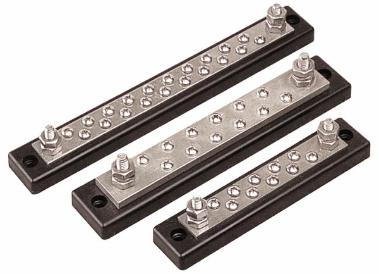

Buss Bar Screw-Terminal Blocks (426722 and 426724) are each equipped with a two 1/4" studs for main wire connection. 426733 is equipped with two 5/16" studs for main wire connection. Constructed of ABS with tin plated brass contacts. Installs with two #10 RH fasteners (not included). Maximum: 48VDC. 426722 has certification by ISO, ABYC, SAE, USCG, and CE low voltage directive standards.
⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
