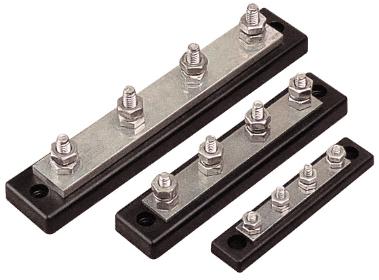

BUSS BAR STUD TERMINAL BLOCK
Tin Plated Brass/ABS| Bulk | Display | Terminals | A | B | C | D | Max. Amps | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|
| 426718 | 426718-1 | 4 x #10-24 | 4-3/16" | 7/8" | 7/8" | 3-7/16" | 100 | .11 | 1 ea | |
| 426728 | 426728-1 | 4 x 1/4"-20 | 6" | 1-1/4" | 1-3/8" | 5-3/16" | 150 | .33 | 1 ea | |
| 426738 | 426738-1 | 4 x 5/16"-18 | 8" | 1-1/2" | 1-5/8" | 7-1/8" | 250 | .81 | 1 ea | |
| 426719 | n/a | Terminal Cover for 426718 | .01 | 10 ea | ||||||
| 426729 | n/a | Terminal Cover for 426728 | .01 | 10 ea | ||||||
| 426739 | n/a | Terminal Cover for 426738 | .01 | 10 ea | ||||||
These Buss Bar Stud Terminal Blocks are primarily used to route and connect positive or negative circuits. The raised bus provides easy access on a single stud, making it useful for consolidating multiple wires or feeding multiple circuits. Constructed of tin plated brass and ABS. Installs with #10 RH fasteners (not included). Maximum: 48VDC.
