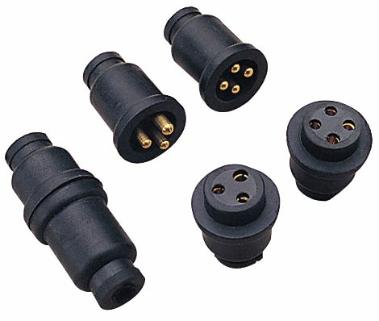

POLARIZED MOLDED ELECTRICAL CONNECTOR

Machined Brass/Molded Bakelite & Neoprene

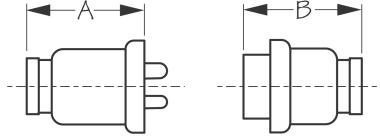

Bulk Display Pin A B Amps Weight Std. Pack Add to List
426162 426162-1 2 1-1/4" 1-3/16" 3 .06 10 ea
426163 426163-1 3 1-1/4" 1-3/16" 4 .07 10 ea
426164 426164-1 4 1-1/4" 1-3/16" 5 .07 10 ea

The Polarized Molded Electrical Connector is constructed of a molded Bakelite and neoprene body with machined brass polarized pins. Pins are sized differently, ensuring only one way to connect the plug, avoiding reverse polarity issues. 3-5A. 12/24VDC. 14 Ga. wire Max. Wire attaches with brass set screws.
