BILGE PUMP PANEL WITH CIRCUIT BREAKER

Injection Molded ABS

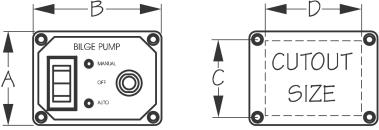

Bulk Display A B C D Volts Fastener Weight Std. Pack Add to List
423040 423040-1 2-3/16" 3" 1-11/16" 2-1/4" 12 #6 RH .11 5 ea
420443 420443-1 Replacement Rocker Switch .02 10 ea

The deluxe Bilge Pump Panel features a three-way switch, allowing both automatic and manual switching of the bilge pump. When operated in the Manual mode, a red LED light is activated. When in the Automatic mode, a green LED light is activated. In addition, the panel is designed so the words “Bilge Pump" will illuminate when back lit, allowing for easy location and operation at night. Includes UL listed 20A circuit breaker, allowing quick and easy resetting of the system. Additional breaker sizes available (420805-420830). Constructed of injection molded ABS for maximum durability and corrosion resistance. Installs with four #6 RH fasteners (not included).

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Bilge Pump Panel With Circuit Breaker Instructions
