BILGE PUMP PANEL WITH FUSE HOLDER

Injection Molded ABS

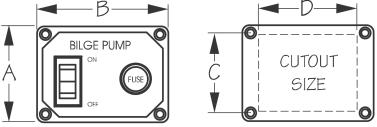

Bulk Display A B C D Volts Fastener Weight Std. Pack Add to List
423030 423030-1 2-3/16" 3" 1-11/16" 2-1/4" 12 #6 RH .07 5 ea
420441 420441-1 Replacement Rocker Switch .02 10 ea
420503 420503-1 Replacement Screw-Top Fuse Holder .03 10 ea

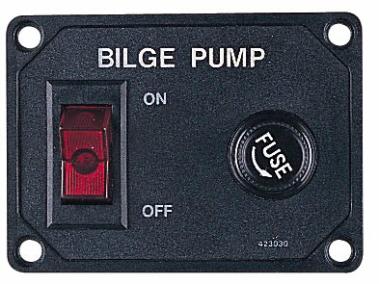

The Sea-Dog® Bilge Pump Switch Panel comes complete with an illuminating On/Off rocker switch and panel mounted fuse holder. The panel is designed so the words “Bilge Pump" will illuminate when back lit, allowing for easy location and operation at night. Accepts AGC fuses (not included). 15A. Constructed of injection molded ABS for corrosion resistance and durability. Installs with four #6 RH fasteners (not included).

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Bilge Pump Panel With Fuse Holder Instructions
