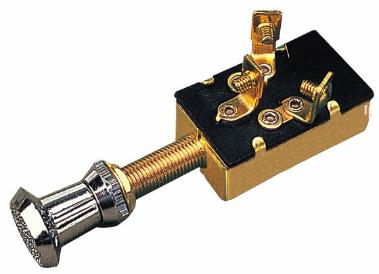

THREE POSITION ONE CIRCUIT PUSH-PULL SWITCH

Stamped Brass

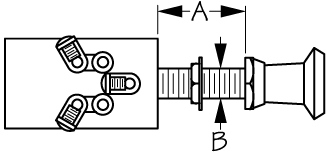

Bulk Display A B Volts Amps Weight Std. Pack Add to List
420410 420410-1 1" 3/8" 12 15 .19 10 ea

This Three Position One Circuit Push-Pull Switch features one circuit (normally Off) three position: Off/On/On. Pushed in all the way, the switch is off. Pulled to the first position, the first circuit is activated. At the second position both first and second circuit are activated. Ideal for cabin or running lights. Maximum panel thickness: 1”. Constructed of corrosion resistant stamped brass. 15A @ 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Pull and Push Button Switches Instructions
