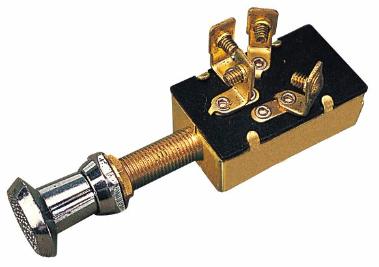

THREE POSITION TWO CIRCUIT PUSH-PULL SWITCH

Stamped Brass

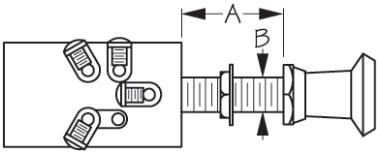

Bulk Display A B Volts Amps Weight Std. Pack Add to List
420400 420400-1 1" 3/8" 12 15 .19 10 ea

Three Position Two Circuit Push-Pull Switch features two circuits (normally Off) three position: Off/On/On. When pushed in all the way, the switch is turned off. When pulled to the first position, the first circuit is activated. At the second position, the first circuit is deactivated and the second circuit is activated. Maximum panel thickness: 1”. Constructed of corrosion resistant stamped brass. 15A @ 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Pull and Push Button Switches Instructions
