THREE POSITION IGNITION SWITCH

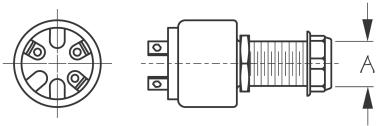

Polypropylene| Bulk | Display | Action | A | Max. Panel | Shaft Type | Terminals | Cap | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|
| n/a | 420360-1 | Off-Ignition-Start | 13/16" | 1-1/8" | Long | 3 Screws | No | .24 | 5 ea | |
| n/a | 420361-1 | Off-Ignition-Start | 13/16" | 5/8" | Short | 3 Screws | No | .24 | 5 ea | |
| n/a | 420365-1 | Off-Ignition-Start | 13/16" | 1-1/8" | Long | 3 Screws | Yes | .25 | 5 ea | |
| n/a | 420366-1 | Off-Ignition-Start | 13/16" | 5/8" | Short | 3 Screws | Yes | .25 | 5 ea | |
| 420398 | 420398-1 | Replacement Cap | .01 | 10 ea | ||||||
| 420399 | n/a | Blank Replacement Key | .01 | 5 ea | ||||||

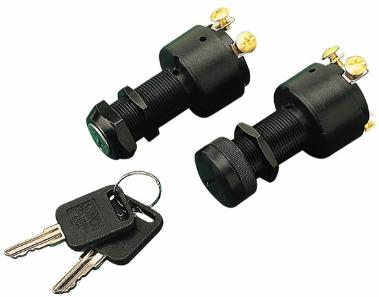

These Three Position Ignition Switches are used for off, ignition, and start functions. 13/16" diameter shaft is available in short shaft (maximum panel thickness: 5/8”) or long shaft (maximum panel thickness: 1-1/8”) versions. Three screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Constructed of polypropylene. Includes two keys. Available with or without rubber boot.
