ILLUMINATING ROCKER SWITCH

Stamped Brass/Injection Molded Nylon/Polycarbonate

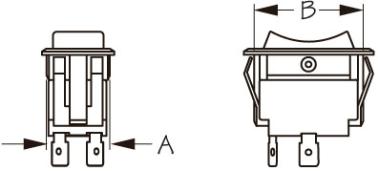

Bulk Display Circuit Action Terminals Amps Volts A B Weight Std. Pack Add to List
420251 420251-1 SPST On/Off 3 Blades 15 12 7/8" 1-7/16" .04 10 ea
420253 420253-1 DPDT On/Off/On 6 Blades 15 12 7/8" 1-7/16" .04 10 ea
420258 420258-1 SPDT On/Off/On 4 Blades 15 12 7/8" 1-7/16" .04 10 ea

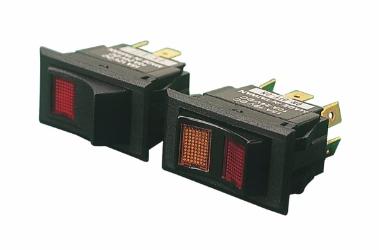

These Illuminating Rocker Switches illuminate in the ON position. Easy to install by simply snapping into a standard 7/8” x 1-7/16” panel slot. Constructed of durable injection molded nylon and stamped brass with wiring for 1/4” blade terminals. 15A @ 12VDC.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Illuminating Rocker Switch Instructions
