HANDRAIL FITTINGS

Die Cast Zinc Chrome Plated
Bulk Display Description Rail Height Tube O.D.* Fastener Weight Std. Pack Add to List

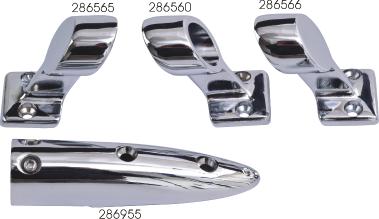

286560 286560-1 60° Center 2-1/8" 7/8" #10 FH .24 10 ea
286565 286565-1 60° End - Left (Port) Inside Set Screw 2-1/8" 7/8" #10 FH .26 10 ea
286566 286566-1 60° End - Right (Starboard)Inside Set Screw 2-1/8" 7/8" #10 FH .26 10 ea
n/a 286955-1 5-1/2° Blend Base n/a 7/8" #10 FH .35 10 ea

These Handrail Fittings can be attached to railing with set screws or pop riveted using stainless or aluminum rivets. Set screws included with display packed fittings only. Set screws can be purchased separately (299999-1) for bulk fittings. Requires 1/8" Allen wrench. Installs with #10 FH fasteners (not included). Constructed of chrome plated die cast zinc. Recommended for freshwater use. *Stainless tubing with a wall thickness of 0.049”.
