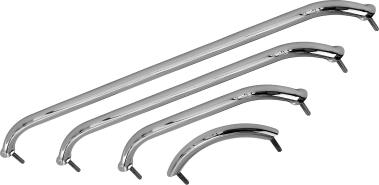

STUD MOUNT HANDRAIL

Formed 304 Stainless Steel

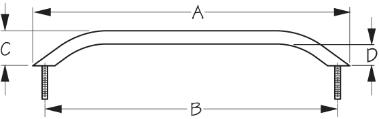

Bulk Display A B C D Finish Tube O.D. Fastener Weight Std. Pack Add to List
254106 254106-1 7-1/4" 6" 1-1/2" 1" Stainless 3/4" 5/16"-18 Nut .33 5 ea
254112 254112-1 12" 10-3/4" 2" 1-1/4" Stainless 3/4" 5/16"-18 Nut .46 5 ea
254118 254118-1 18-1/2" 16-3/4" 2" 1-1/4" Stainless 3/4" 5/16"-18 Nut .64 5 ea
254124 254124-1 24" 22-1/2" 2" 1-1/4" Stainless 3/4" 5/16"-18 Nut .80 5 ea

These Stud Mounted Handrails are designed to provide a sleek, smooth handrail transition to the mounting surface of your boat. Functional and attractive, with no visible mounting hardware. Features integral 5/16”-18 x 1-15/16" threaded studs. Constructed of corrosion resistant formed 304 stainless steel. Installs with two 5/16”-18 nuts (not included).
