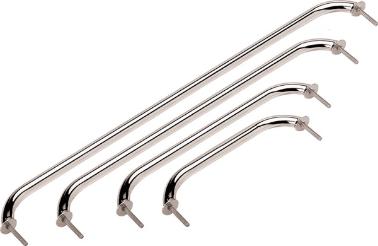

STUD MOUNT FLANGED HANDRAIL

Formed 304 Stainless Steel
Bulk Display A B C D Finish Tube O.D. Fastener Weight Std. Pack Add to List
254209 254209-1 10" 8-3/4" 2-1/4" 1-1/2" Stainless 7/8" 5/16"-18 Nut .44 5 ea
254212 254212-1 13-1/2" 12" 2-1/4" 1-1/2" Stainless 7/8" 5/16"-18 Nut .53 5 ea
254218 254218-1 19-3/8" 18" 2-1/4" 1-1/2" Stainless 7/8" 5/16"-18 Nut .70 5 ea
254224 254224-1 25-1/4" 24-1/4" 2-1/4" 1-1/2" Stainless 7/8" 5/16"-18 Nut .76 5 ea

These Stud Mounted Flanged Handrails provide a larger mounting surface for greater stability. Functional and attractive, with no visible mounting hardware. Features integral 5/16”-18 x 1-5/8" threaded studs. Constructed of corrosion resistant formed 304 stainless steel. Installs with two 5/16”-18 nuts (not included).
