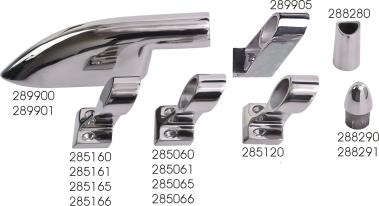

HANDRAIL FITTINGS

Investment Cast 316 Stainless Steel
Bulk Display Description Rail Height Tube O.D.* Fastener Weight Std. Pack Add to List
285060 285060-1 60° Center 1-13/16" 7/8" #10 FH .28 10 ea
285061 285061-1 60° Center 1-7/8" 1" 1/4" FH .34 10 ea
285065 285065-1 60° Center - Left (Port)Inside Set Screw 1-13/16" 7/8" #10 FH .28 10 ea
285066 285066-1 60° Center - Right (Starboard) Inside Set Screw 1-13/16" 7/8" #10 FH .27 10 ea
285120 285120-1 120° End 1-13/16" 7/8" #10 FH .28 10 ea
285160 285160-1 60° End 1-13/16" 7/8" #10 FH .31 10 ea
285161 285161-1 60° End 1-7/8" 1" 1/4" FH .38 10 ea
285165 285165-1 60° End - Left (Port) Inside Set Screw 1-13/16" 7/8" #10 FH .29 10 ea
285166 285166-1 60° End - Right (Starboard) Inside Set Screw 1-13/16" 7/8" #10 FH .30 10 ea
288280 288280-1 Rail Standoff 2-1/4" 7/8" 5/16" Bolt .11 10 ea
288290 288290-1 Bullet End n/a 7/8" n/a .11 10 ea
288291 n/a Bullet End n/a 1" n/a .13 10 ea
289900 289900-1 90° End - Bottom Mounted 1-7/8" 7/8" 1/4" - 28 Bolt .82 5 ea
289901 289901-1 90° End - Bottom Mounted 1-7/8" 1" 1/4" - 28 Bolt 1.16 5 ea
289905 289905-1 60° Center - Bottom Mounted 1-7/8" 7/8" 1/4" - 28 Bolt .31 5 ea

These Handrail Fittings are designed to be used in conjunction with 7/8” or 1” OD stainless tubing to create custom handrails. Constructed of corrosion resistant investment cast 316 stainless steel. Includes set screws where appropriate. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench. Installs with FH fasteners (not included). *Stainless tube wall thickness 0.049”.
