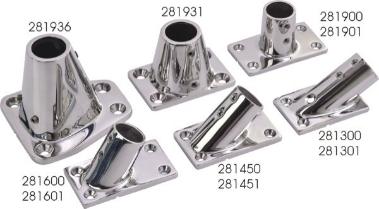

RAIL BASE FITTINGS - RECTANGULAR
Investment Cast 316 Stainless Steel| Bulk | Display | Description | Tube O.D.* | Base | Fastener | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|
| 281300 | 281300-1 | 30° Rectangular Base | 7/8" | 1-3/4" x 2-5/8" | #10 FH | .43 | 10 ea | |
| 281301 | 281301-1 | 30° Rectangular Base | 1" | 1-7/8" x 3-3/16" | 1/4" FH | .51 | 10 ea | |
| 281450 | 281450-1 | 45° Rectangular Base | 7/8" | 1-11/16" x 3" | #10 FH | .42 | 10 ea | |
| 281451 | 281451-1 | 45° Rectangular Base | 1" | 1-7/8" x 3-1/4" | 1/4" FH | .59 | 10 ea | |
| 281600 | 281600-1 | 60° Rectangular Base | 7/8" | 1-3/4" x 3-1/16" | #10 FH | .48 | 10 ea | |
| 281601 | 281601-1 | 60° Rectangular Base | 1" | 1-7/8" x 3-1/4" | 1/4" FH | .57 | 10 ea | |
| 281900 | 281900-1 | 90° Rectangular Base | 7/8" | 1-11/16" x 3" | #10 FH | .42 | 10 ea | |
| 281901 | 281901-1 | 90° Rectangular Base | 1" | 1-7/8" x 3-3/16" | 1/4" FH | .53 | 10 ea | |
| 281931 | 281931-1 | 90° Volcano Base | 1" | 2-1/16" x 3" | 1/4" FH | .46 | 10 ea | |
| 281936 | 281936-1 | 90° Volcano Base | 1" | 3-11/16" x 3-3/8" | 1/4" FH | .97 | 10 ea |
These Rectangular Rail Base Fittings include set screws where appropriate. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench to install. Constructed of corrosion resistant investment cast 316 stainless steel. Installs with four FH fasteners (not included). * Stainless tube wall thickness 0.049".
