TOP FITTINGS

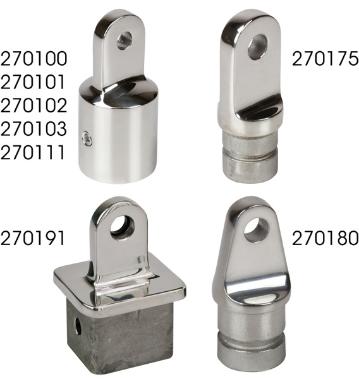

Investment Cast 316 Stainless Steel| Bulk | Display | Description | Tube O.D.* | Pin Size | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|
| 270100 | 270100-1 | Top Cap | 7/8" | 1/4" | .20 | 10 ea | |
| 270101 | 270101-1 | Top Cap | 1" | 1/4" | .28 | 10 ea | |
| 270102 | n/a | Top Cap | 1-1/4" | 5/16" | .44 | 10 ea | |
| 270103 | n/a | Top Cap | 1-1/8" | 5/16" | .26 | 10 ea | |
| 270111 | 270111-1 | Top Cap Heavy Duty | 1" | 5/16" | .23 | 10 ea | |
| 270175 | 270175-1 | Top Insert | 3/4" | 1/4" | .09 | 10 ea | |
| 270180 | 270180-1 | Top Insert | 7/8" | 1/4" | .15 | 10 ea | |
| 270191 | 270191-1 | Square Tube Top Insert | 1-1/4" (1" x 1" inside) | 1/4" | .19 | 10 ea |
Top Fittings create an attachment point and function as a pivot point as part of a Bimini top system. For use as a top cap for 7/8”-1-1/8” round tubing or as an insert for 3/4” or 7/8” OD tubing. Also available as an insert for 1-1/4” square tubing (1” x 1” inside dimensions) commonly found on pontoon boats. 1/4” or 5/16” pin size. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench to install. Constructed of corrosion resistant investment cast 316 stainless steel. *Stainless tube wall thickness 0.049”.
