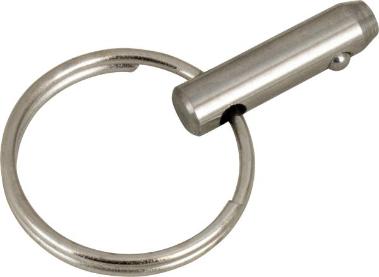

RELEASE PIN

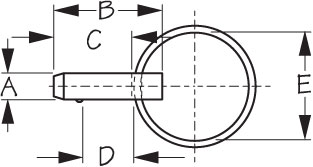

Formed 304 Stainless Steel| Bulk | Display | A | B | C | D | E | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|
| 193410 | 193410-1 | 1/4" | 1" | 3/4" | 7/16" | 1" | .02/.04 | 10 ea/10 pr | |
| 193415 | 193415-1 | 1/4" | 1-1/2" | 1-1/4" | 7/8" | 1" | .03/.06 | 10 ea/10 pr | |
| 193420 | 193420-1 | 1/4" | 2-1/16" | 1-7/8" | 1-1/2" | 1" | .04/.08 | 10 ea/10 pr | |
| 193425 | 193425-1 | 1/4" | 2-1/2" | 2-3/16" | 1-15/16" | 1" | .04/.08 | 10 ea/10 pr |

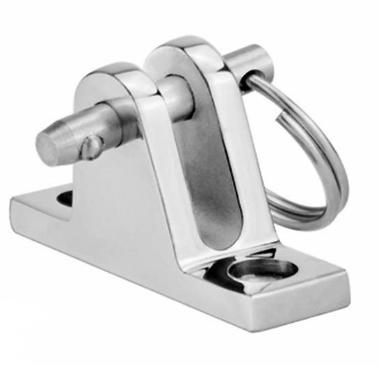

Standard duty detent Release Pins are ideal for basic holding and removal applications that don't require a positive locking ball feature. These quick release pins are activated by a push or pull motion. The detent ball depresses and springs up for "quick release" applications. This robust, durable design is suitable for repetitive-use applications. Ideal for anchor clevis fittings, hinge pins, or to replace cotter pins where frequent removal is necessary. Includes split ring for attachment of optional lanyard. Constructed of corrosion resistant formed 304 stainless steel.
