JAW & JAW TURNBUCKLE
Forged Steel Hot Dipped Galvanized| Bulk | Display | A (Threads) | B | C | D | E | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|
| 186100 | n/a | 1/4"-28 | 7-1/2" | 11-1/2" | 1/4" | 3/8" | .40 | 10 ea | |
| 186110 | n/a | 5/16"-24 | 8-7/8" | 13-1/4" | 1/4" | 1/2" | .57 | 10 ea | |
| 186121 | n/a | 3/8"-24 | 10-1/2" | 16-1/2" | 5/16" | 1/2" | .93 | 10 ea | |
| 186131 | n/a | 1/2"-20 | 12-1/2" | 18-1/2" | 3/8" | 5/8" | 1.68 | 10 ea |

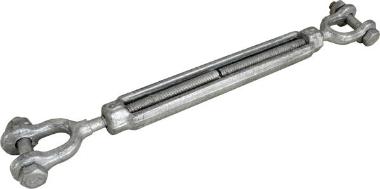

Jaw & Jaw Turnbuckles are used for adjusting the tension and/or length of ropes and cables. They consist of two threaded bolts screwed into each end of a metal body, one with left-hand thread and the other with right-hand thread. The tension can be adjusted by rotating the body, causing both bolts to be screwed in or out simultaneously, without twisting the bolts or attached cables. Constructed of hot dipped galvanized forged steel for corrosion resistance. Turnbuckles should be lubricated before their first use and regularly thereafter. They should also be regularly rinsed with fresh water and inspected for signs of damage such as bent terminals or cracking at thread roots or end of thread. End fittings should be checked to ensure uninhibited universal movement.
