STUD MOUNT FLANGED HANDRAIL
Formed 304 Stainless Steel| Bulk | Display | A | B | C | D | Finish | Tube O.D. | Fastener | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 254620 | 254620-1 | 10" | 8-3/4" | 2-1/4" | 1-1/2" | Stainless | 7/8" | 5/16"-18 Nut | .44 | 5 ea | |
| 254622 | 254622-1 | 13-1/2" | 12" | 2-1/4" | 1-1/2" | Stainless | 7/8" | 5/16"-18 Nut | .53 | 5 ea | |
| 254626 | 254626-1 | 19-3/8" | 18" | 2-1/4" | 1-1/2" | Stainless | 7/8" | 5/16"-18 Nut | .70 | 5 ea | |
| 254628 | 254628-1 | 25-1/4" | 24-1/4" | 2-1/4" | 1-1/2" | Stainless | 7/8" | 5/16"-18 Nut | .76 | 5 ea | |
| 254630 | 254630-1 | 10" | 8-3/4" | 2-1/4" | 1-1/2" | Black Matte | 7/8" | 5/16"-18 Nut | .44 | 5 ea | |
| 254632 | 254632-1 | 13-1/2" | 12" | 2-1/4" | 1-1/2" | Black Matte | 7/8" | 5/16"-18 Nut | .53 | 5 ea | |
| 254636 | 254636-1 | 19-3/8" | 18" | 2-1/4" | 1-1/2" | Black Matte | 7/8" | 5/16"-18 Nut | .70 | 5 ea | |
| 254638 | 254638-1 | 25-1/4" | 24-1/4" | 2-1/4" | 1-1/2" | Black Matte | 7/8" | 5/16"-18 Nut | .76 | 5 ea |

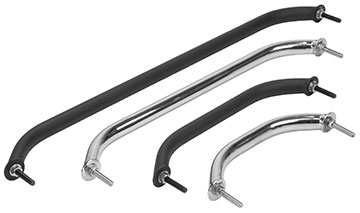

These Stud Mounted Flanged Handrails provide a larger mounting surface for greater stability. Functional and attractive, with no visible mounting hardware. Features integral 5/16”-18 x 1-5/8" threaded studs. Constructed of corrosion resistant formed 304 stainless steel also available in black matte finish. Installs with two 5/16”-18 nuts (included).
