U-BOLT
Machined 304 Stainless Steel| Bulk | Display | A | B | C | D | E | B.S. (lb.) | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|
| 080243 | 080243-1 | 4 mm | 1-3/8" | 1" | 2-9/16" | 1-3/16" | 1,650 | .08 | 10 ea | |
| 080253 | 080253-1 | 5 mm | 1-3/8" | 1" | 2-5/8" | 1-3/16" | 1,950 | .08 | 10 ea | |
| 080263 | 080263-1 | 6 mm | 1-1/4" | 1-1/16" | 2-9/16" | 1-5/16" | 2,950 | .13 | 10 ea | |
| 080265 | 080265-1 | 6 mm | 1-7/8" | 1-1/16" | 3-3/16" | 1-5/16" | 2,950 | .14 | 10 ea | |
| 080283 | 080283-1 | 8 mm | 1-3/8" | 1" | 2-3/4" | 1-5/16" | 3,850 | .19 | 10 ea | |
| 080285 | 080285-1 | 8 mm | 2" | 1" | 3-5/16" | 1-5/16" | 3,850 | .21 | 10 ea | |
| 080288 | 080288-1 | 8 mm | 3-1/8" | 1" | 4-1/2" | 1-5/16" | 3,850 | .26 | 10 ea |

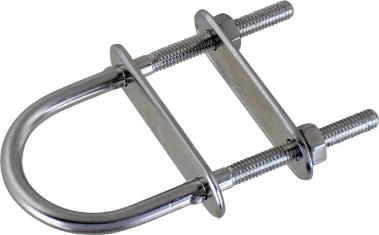

These U-bolts feature an outer mounting plate which is held in place by crimped ears forged into the U-Bolt. Constructed of corrosion resistant machined 304 stainless steel with metric threads. Metric nuts included. Plate Sizes:
- 080243-080253: 1-5/8" x 1/2" (x2)
- 080263-080288: 2" x 11/16" (x2)
