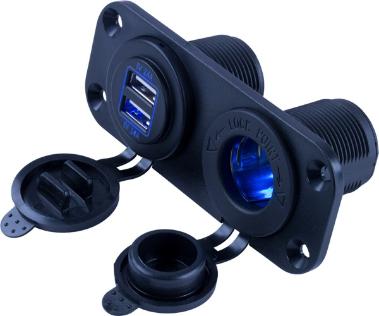

DUAL USB & POWER SOCKET PANEL

Injection Molded Nylon

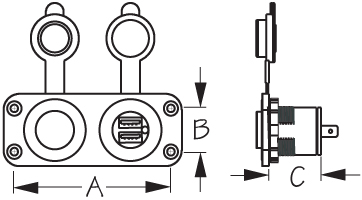

Bulk Display A B C Volts USB Total Output Weight Std. Pack Add to List
426505 426505-1 3-1/2" 1" 1-5/8" 8-32 5V/4.8A .16 10 ea
426501 n/a Mounting Panel Only .05 10 ea

Dual USB & Power Socket Panel charges two devices simultaneously. Accommodates both USB connectors and standard power sockets. USB total output is 4.8A, split 2.4A per side as needed. Enough power to charge phones, pads, and tablets quickly and efficiently. Protective dust cap extends the life of the charger. Constructed of injection molded nylon. Includes mounting screws and electrical connectors. Output DC: 5V/4.8A. Input: 8-32VDC. Maximum: 16A. IP65 rating. RoHS compliant.

⚠ Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Button pdf d68e31203df031f489d35f81c36d6cf5ca4a4c7b4af67bf8fd1dc7ea535478ea View Dual USB & Power Socket Panel Instructions
